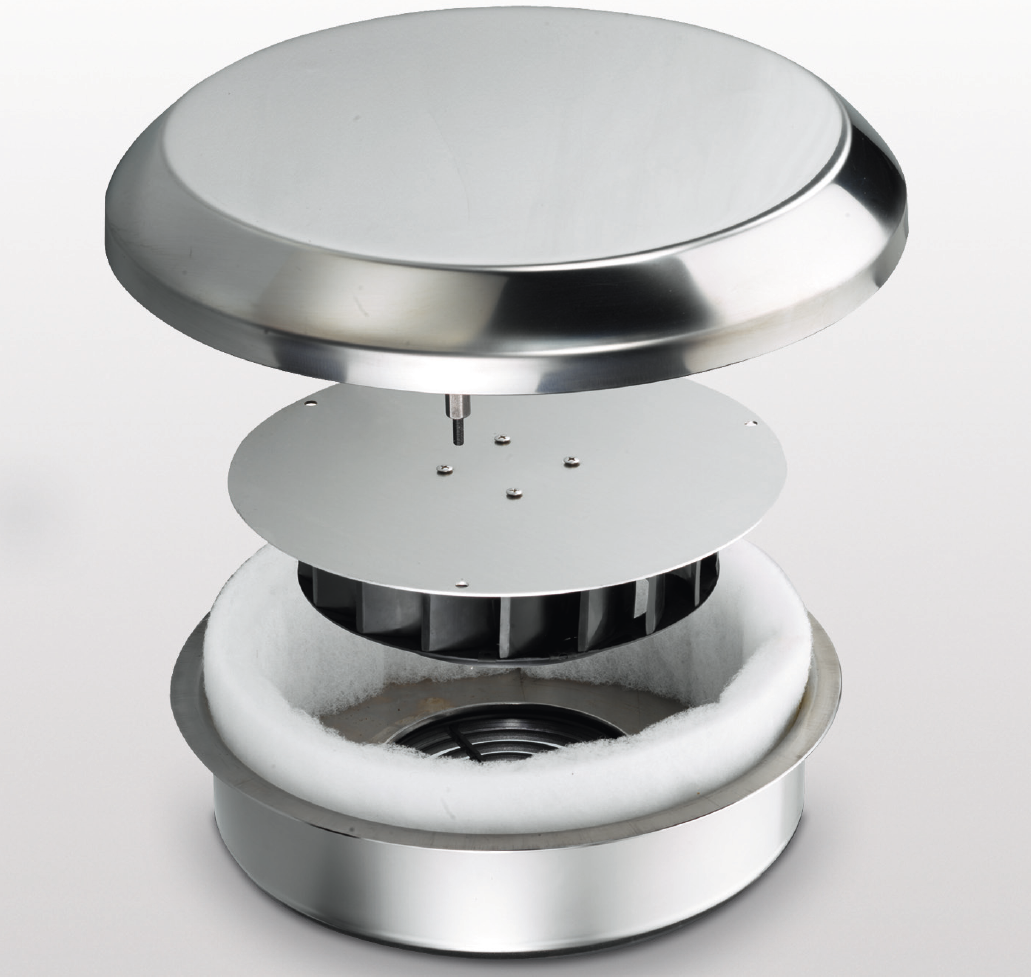

ROOF MOUNT VENTILATING UNITS SERIES KR
For use when cabinet ventilation through the roof is practical and cost-effective. Extraction mode operation. Easy installation, except for the filter pack it is accommodated inside the roof unit itself.
The outside casing is made of EN 1.4301 (TYPE 304L ) or of EN.1.4404 (TYPE316L) stainless steel, finely satin-finished.
The single phase motor is engineered for high performance but low noise levels.
Centrifual axial fan set on ball bearings, to maintain high efficiency even with high levels of static pressure (poor conditions of filters)
The whole system features IP45 or IP55 protection degree depending on the filter in use, and meets the essential requirements of Directive on Machinery 89/392/CE and the European standards UNI EN 292 part I, II; UNI EN 294; CEI 44-5 and 6 (IEC 204-1 and 2).
VENTILATING UNIT KR20/55
|
Technical data |
||
| Protection degree |
IP55 |
|
| Material |
EN 1.4301 (TYPE 304L) |
|
| Supply voltage |
V |
230 |
| Frequency |
Hz |
50/60 |
| Absorbed current |
A |
0.25 |
| Door (free suction) |
m3/h |
430 |
| Rpm |
Rpm |
2550 |
| Noise |
dBA |
64 |
| Max. temperature |
°C |
50 |
ROOF MOUNT EXTRACTION FAN
The unit can be delivered without motor, protection degree IP55, to be used simply as filter.
To increase the air flow and when a high protection degree is not required (max IP23), the filtering units can be avoided.
Without filters it becomes an effective natural aeration system.
Waterproofing is assured by the labyrinth system.
