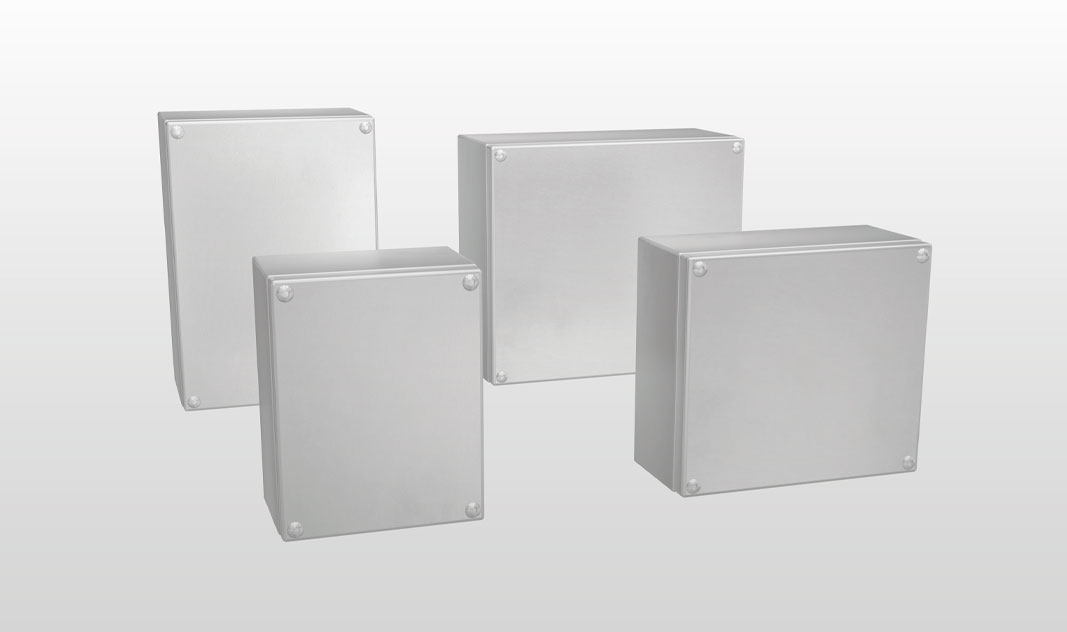

Junction Boxes DS – EX

JUNCTION BOXES DS-EX

JUNCTION BOXES DS – EX
• Made of EN 1.4301 (TYPE 304L) s/s  or EN 1.4404 (TYPE 316L) s/s, scotch brite, satin-finish, protected  on one side.
• The state-of-the-art welding methods adopted permit to maintain unaltered the chemical composition of the material, thus avoiding corrosion phenomena in the weld areas.
• The cover is secured by special “leak-proof” screws M5.
•    Seal made of silicone foam.
• The enclosure can be used at the following Maximum Temperatures on the outer surface:
-40°C to + 180°C with seal of silicone foam
• Pre-arranged for earthing in compliance with the applicable regulations in force.
• S/s stud bolts M6 are set to the bottom to secure bars and structural sections
• Inner plate in sendzimir execution (on request).
• Drillings, if any, are possible in compliance with the parameters indicated in the instruction manuals
• Protection degree IP66 (CEI EN 60529)
* Certificates for area 1 – 2- 20 – 21 – 22

Catalogue of Atex Line    DOWNLOAD
