Small Cabinets Series QL-EX

Series QL-EX

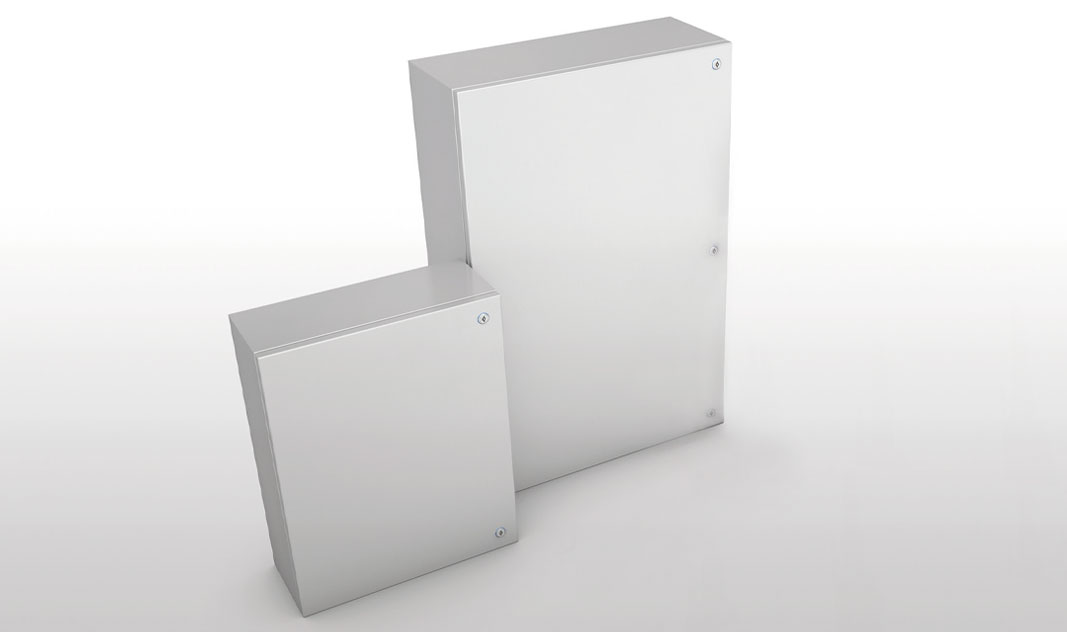

SMALL CABINETS SERIES QL – EX

•    Material: stainless steel EN 1.4301 (TYPE 304L) or EN 1.4404 (TYPE 316L) scotch brite satin-finish and protection on one side.
•    Enclosure obtained from a single sheet, shaped by multi-bending of the envelope front edge.
•    Fairlead not included.
•    Single full door.
•    Locks: twin comb, standardized type Ø 3 for low voltage, s/s outer parts.
•    S/s inner hinges: 120° opening as per CEI EN 60204-1 recommendations.
•    Maximum weight admitted on the door: 12 kg.
•    Seal made of foamed polyurethane or silicone foam.
• The enclosure can be used under the following Maximum Temperatures on the outer surface:
•  -20°C to + 60°C with seal of bicomponent foamed polyurethane
•  -40°C to + 180°C with seal of bicomponent silicone foam
•    Inner plate of EN 10142  sendzimir galvanized sheet, secured to the enclosure bottom by M8 threaded pins, delivered with the cabinet.
•    Prearranged for earthing in compliance with the applicable regulations in force.
• Drillings, if any, to comply with the parameters indicated in the instruction manual
• Protection degree: IP66 (CEI EN 60529)
* Certificates for areas 1 – 2 – 21 – 22

NOTE: The sketch of these cabinets are unique and therefore apply to the whole series QL_EX

 ITEMS 33 – 34 – 43 : only 1 central lock
ITEMS QL812 with 3 locks
