Console CS
Console CSD550J

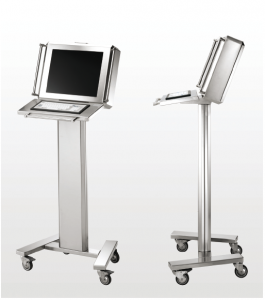

CONSOLE CSD550J
The console CSD550J is formed by modular elements:
• control box
• keyboard rest
• pedestal with casters
• handles for displacement.
The absence of sharp corners, the ergonomic line, make this item fit for use in environments where stringent hygienic-sanitary standards must be complied with.
The console being formed by various elements, it can be configured in different ways according to the need; for instance, without wheels, or without keyboard rest; also, the order can be placed for the control boxes only, to be combined with a hanging system.
All EN 1.4301 (TYPE 304L) s/s execution, EN 1.4404 (TYPE 316L) s/s satin finished scotch brite available on request.
The box can accommodate an operator interface maximum dimensions 450x350x120 mm.; accessibility to the rear area is assured by a bolted panel.
Silicone seal.
Dimensions other than the standard ones are available on request.
Protection degree IP54 to EN 60 529.
CSD550Z

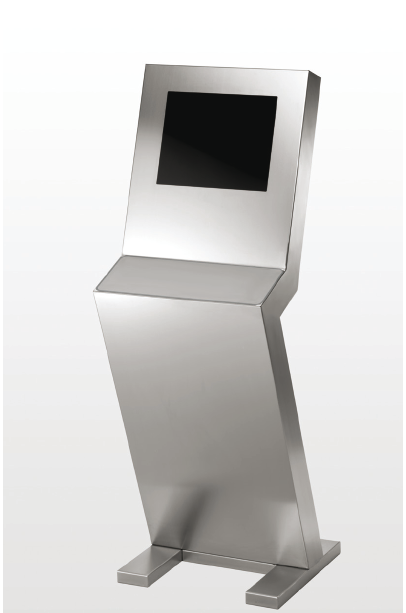

CONSOLE CSD550Z
EN 1.4301 (TYPE 304L) s/s execution, satin-finished scotch brite and protected, EN 1.4404 (TYPE 316L) s/s execution available on request; fit for accommodating an operator interface having maximum dimensions 480x530x90 mm. and a keyboard, if the need be.
Smart, compact and essential, no flat surfaces to avoid filth build-up while facilitating clearing; rear area accessible by taking down a bolted panel.
The rest base, which provides stability, is prearranged for the application of casters.
Silicone seal.
Dimensions other than the standard ones are available on request.
Protection degree IP44 to EN 60 529; higher protection degrees available on request.
