Accessories For Hygienic Design
Feet
FEET
Adjustable feet, simple and appealing design, certified and approved for use in food, dairy, pharmaceutical industries and in all those environments where compliance with hygienic-sanitary rules are a must. The seals guarantee tightness on all mobile surfaces; the ring nut acting as a lock-nut covers the threaded pin. The ground rest plate adhere perfectly, thus assuring stability with vibration proof effect thanks to the NBR rubber insert.
EN 1.4301 (TYPE 304L) polished s/s execution.
Our feet can make up for floor unevenness up to a 10° angle.
Foot
• Foot PSDXH65200
Certified according to 3A standards (for supports: “88-00”) and EHEDG (Type EL – class 1).
Delivered with EHEDG marking, logo 3A, instruction for assembling and clearing, certification 3° and EHEDG approval.
Height adjustable from 140mm minimum to 206 mm maximum.
• Foot PSDH60200
Certified USDA
Height adjustable from 135mm minimum to 205mm maximum.
Foot hygienic
• HYGIENIC FOOT
Smooth surfaces, perfectly draining, no threads, sharp corners or gaps where filth could be trapped.
Seals on all moving surfaces.
Traditional Foot
• TRADITIONAL FOOT

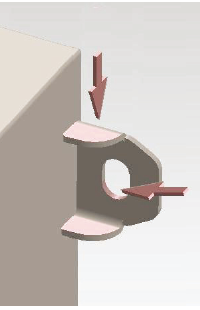

Unprotected threads, undercuts, sharp corners and level, not draining surfaces.
Cable Glands and plug
CABLE GLANDS AND PLUGS

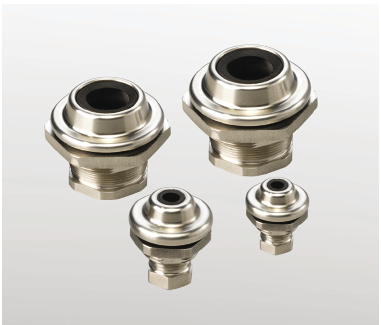

IMetric cable glands series PH and plugs series TP meet the requirements for use in food, dairy, pharmaceutical industries as well as in all those environments where compliance with hygienic-sanitary regulations is a must (Directive on machinery 2006/42/EC DIN EN 1672-2-2005, Documents EHEDG 8 E 13). This is possible thanks to the technical solutions adopted and to the design criteria: 25% sloping surfaces to avoid filth build-up; radial corners; no threads; gaps in contact with the outside; tamperproof for they cannot be opened from the outside. Delivered complete with OR, standard seal on the cable and ring nut.
EN 1.4301 (TYPE 304L) s/s execution, mirror finish; the EPDM seal is fit for use in the environments for which the cable gland has been designed: gaskets made from different materials can be supplied on request.
• Protection degree IP68 as per EN 60 529 and IP69K as per DIN 40 050-T9.
• Temperature range: -40°c + 120°C, intermittent up to 40°C approx.
• Available also in the EMC version, on request.

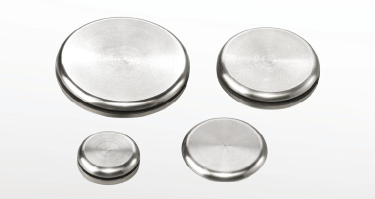

Taps
Taps TP Series
Hygienic Cable Gland
• HYGIENIC CABLE GLAND
Smooth slanting surfaces, no threads in contact with the environment, radial corners.
Traditional Cable Gland
• TRADITIONAL CABLE GLAND
Unprotected threads, sharp corners and level surfaces not draining.
Wall Mounts
WALL MOUNTS

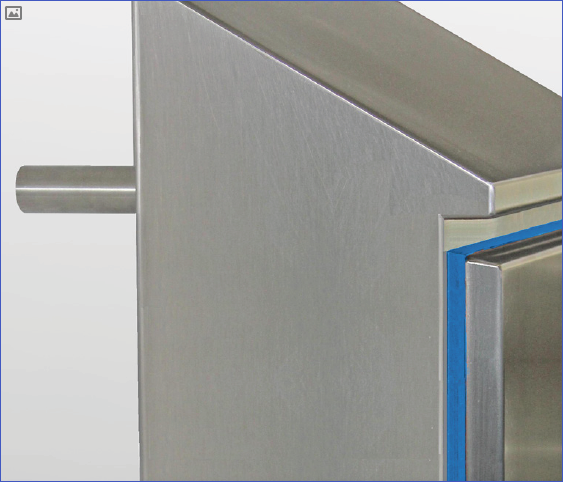

The wall mounts of the sanitary line have been designed to space the control board from the wall and prevent filth from building-up between the two elements, and to allow cleaning. Cylindrical shape with no threads or gaps in contact with the environment; the threaded parts are protected by OR.
EN 1.4301 (TYPE 304L) s/s execution, satin finish, available with 75mm standard length, can be coupled to space the control board from the wall 75mm, 150mm and 225mm.
To avoid criticalities from an hygienic-sanitary point of view, the small cabinets of the QSD and QSE line have no drilling; some blind holes are however present in the back wall, to identify the exact positions of the wall mount drills.
Wall mounts
• DIST75QSD 4-pcs pack of wall mounts.
Hygienic Wall Mount
• HYGIENIC WALL MOUNT SYSTEM

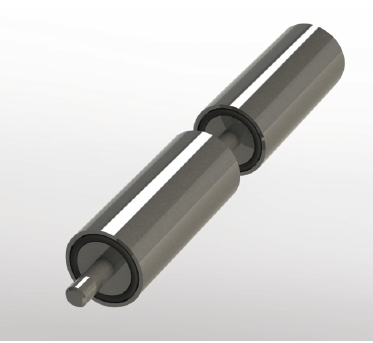

Smooth rounded surfaces, they are designed to space the control board from the wall to facilitate clearing and avoid cavities where filth might deposit.
Traditional Wall Mount
•
TRADITIONAL WALL MOUNT SYSTEM

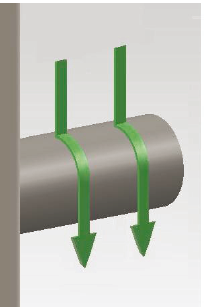

Designed to secure the control board close to a wall, filth can build up between the two elements.
Level surfaces and undercuts.
DoorLock
DOORLOCK

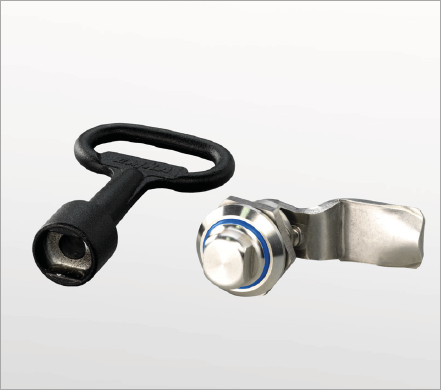

The Sanitary SG838 doorlocks are manufactured to comply with hygienic-sanitary regulations DIN EN 1672-2 and DIN EN 14159. No gap where filth might deposit in the part in contact with the environment; complete with seal to prevent cracking between the rotating bushing and the fixed body.
Opening and closing, on ¼ turn, require an appropriate key or other suitable tool. The body of the doorlock is made of EN 1.4571 (TYPE 316TI) s/s, while the tongue inside the cabinet is made of galvanized steel (EN 1.4301 – TYPE 304L s/s on request).
Protection degree IP69K as per DIN 40 050-T9.
Standard on the cabinets of the QSD line, they are optional on the cabinets of the QSE line.
• SG838 Sanitary doorlock
• SG838C Sanitary key
Hygienic Doorlock
HYGIENIC DOORLOCK
Smooth, perfectly draining surfaces, without gaps where filth might build-up.
Seal to avoid gaps between bushing and body.
Traditional Doorlock
TRADITIONAL DOORLOCK

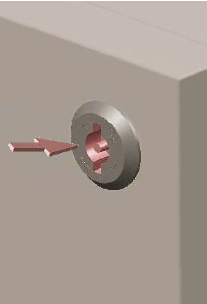

Recessed cut for key entry, inside which filth can build-up.
